Custom Wire Harness Engineering Case Studies
For more than 20 years, YZCONN Factory has supported customers across industrial automation, automotive electronics, communication systems, RF applications, new energy equipment, and other demanding industries. We have also built long-term manufacturing cooperation and stable supply relationships with Fortune Global 500 companies.
Through years of hands-on manufacturing experience and close technical collaboration with customers, we have accumulated extensive project knowledge covering product design support, engineering validation, prototype development, manufacturing optimization, and quality assurance.
The engineering cases shared here represent only a small part of the projects we have participated in over the years. More importantly, they show how we approach every project — with engineering responsibility, attention to detail, and a strong focus on long-term product reliability and production stability.
At YZCONN, we believe a qualified manufacturing partner should be more than just a supplier. A valuable partner should communicate efficiently with engineering teams, understand practical production challenges, and help customers reduce risks before they become problems.
From sample development to mass production, we continuously improve our engineering collaboration capabilities, manufacturing processes, and quality control standards. With dedicated experience in custom wire harness and connector manufacturing, YZCONN remains committed to delivering stable quality, reliable production, and practical engineering support for customers worldwide.
PCB Connector Soldering Optimization
Challenge: During the production of a PCB connector project, our team encountered a high defect rate of 40%, mainly caused by insufficient soldering quality. Through detailed process analysis, we found that conventional soldering methods could not achieve the desired results due to inadequate venting in the solder troughs.

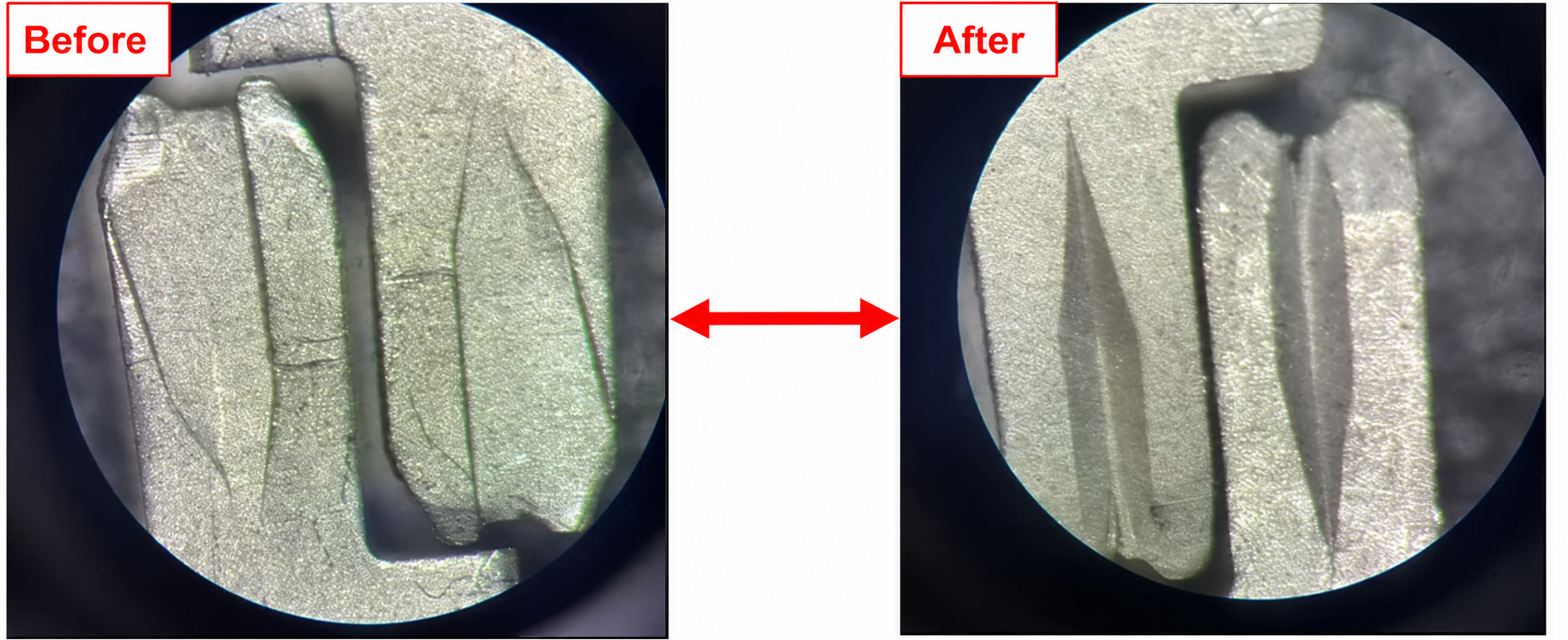

Solution: To solve this problem, our engineering team redesigned the cross-sectional profile of the solder troughs to improve gas release during soldering. This precise engineering adjustment eliminated soldering defects, reducing the defect rate from 40% to 0% and ensuring every unit passed 100% pre-shipment inspection.
Result: As a result, production efficiency improved, rework and after-sales costs were significantly reduced, and customer feedback confirmed better product stability and longer service life in end-use applications. YZCONN also converted this experience into standardized process templates, helping future projects replicate the same success while maintaining strict quality standards.
Benefits:
Defect Rate Reduced by 40%
Production Efficiency Significantly Improved
100% Pre-shipment Inspection Passed
Automotive Camera Signal Connector Optimization
Challenge: During the sample testing phase of an automotive camera signal connector project, the customer reported intermittent signal transmission issues between the connector and PCB. When the connector was fully inserted, the camera signal was lost; when slightly pulled back, the signal partially recovered, causing unstable image transmission and data loss.

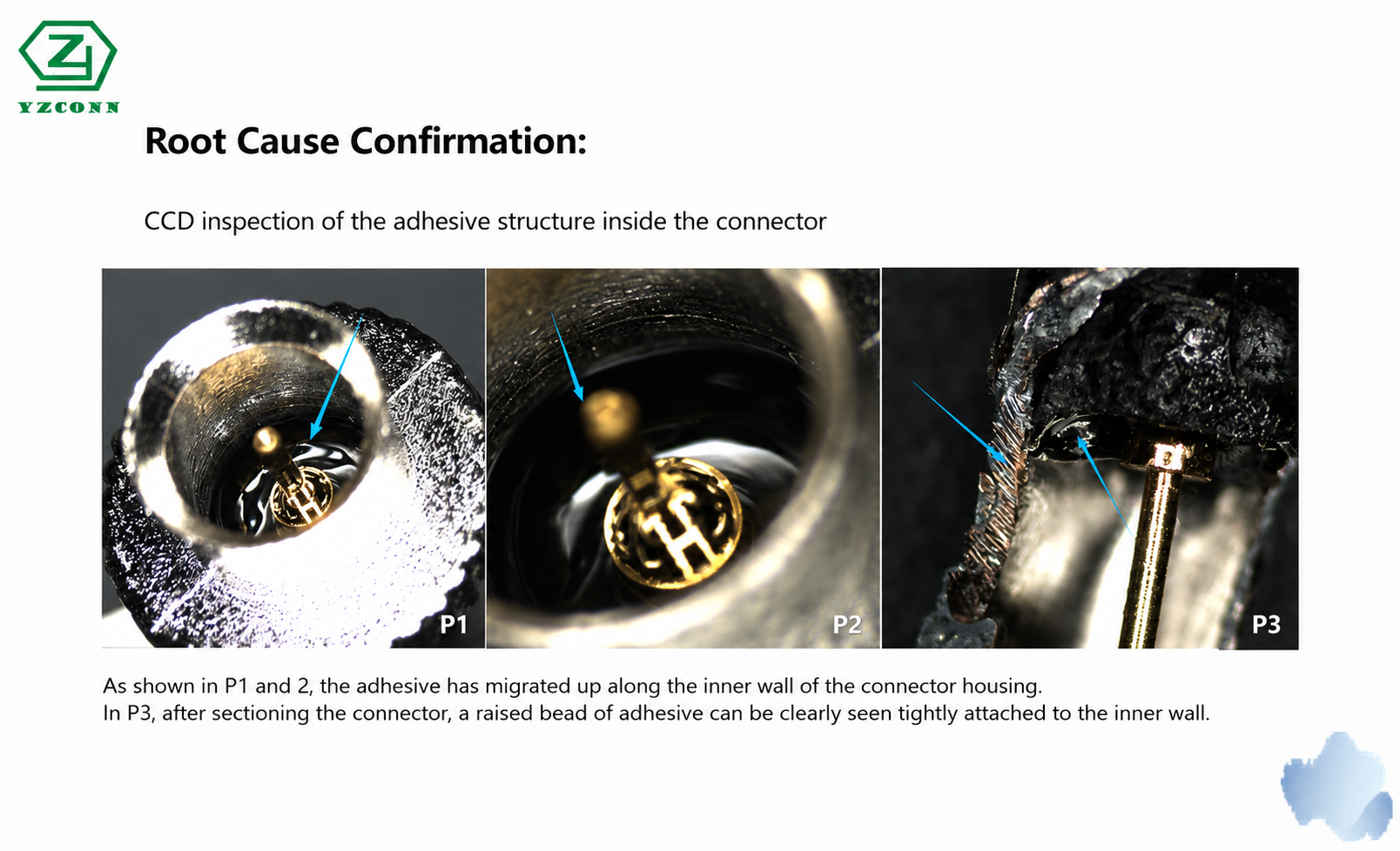

Solution: After in-depth analysis, our team identified that the issue was related to the internal adhesive structure of the connector. To confirm the root cause, YZCONN engineers conducted internal inspections using CCD, X-Ray Inspection, and Cross-Section analysis equipment. The results showed that inconsistent adhesive distribution was affecting contact reliability inside the connector assembly.
We optimized the dispensing process by implementing automated machine-controlled adhesive application, ensuring precise and consistent glue volume control across every connector.
Result: The improvement eliminated poor contact issues and ensured reliable signal transmission. It also improved product consistency and customer satisfaction, supporting stable performance in demanding automotive environments.
Benefits:
Intermittent Signal Loss Resolved
Contact Reliability Significantly Improved
Consistent Performance Across Every Unit
Rail Transit Display LVDS Connection Optimization
Challenge: During the sample testing phase of a rail transit display project, the customer encountered connection stability issues between the LVDS cable assembly, HRS connector, and FFC interface used in the subway display system. During operation, the connector moved laterally after mating, resulting in unstable contact and intermittent display signal issues.

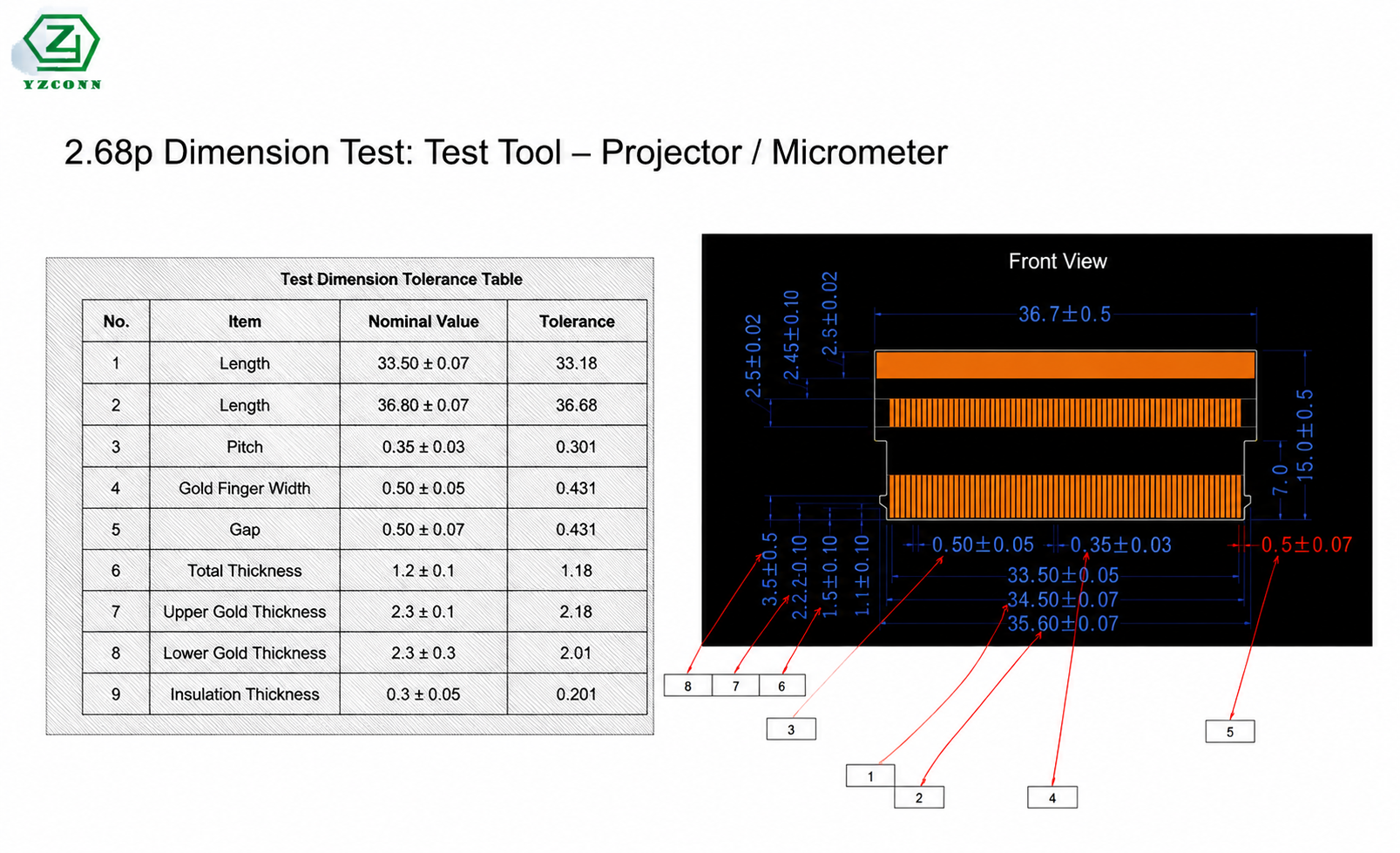

Solution: After receiving customer feedback, YZCONN’s engineering team analyzed the assembled products, connector structure, and dimensional tolerances. Through detailed inspection and validation, we confirmed that the issue was not caused by manufacturing defects, but by dimensional deviations in the customer’s original design drawings.
Based on the updated parameters, we modified the tooling and rebuilt the mold to ensure accurate connector matching and stable mechanical engagement between the HRS connector and FFC assembly.
Result: The optimized solution eliminated connector movement and resolved the contact instability issue, ensuring reliable signal transmission and stable display performance in demanding rail transit operating environments. This case reflects YZCONN’s engineering validation capability, dimensional analysis expertise, and proactive customer support throughout product development.
Benefits:
Dimensional Accuracy Fully Aligned
Stable Connector Engagement
Reliable Signal on Display Systems
