Sourcing the correct communication components often determines the success or failure of an infrastructure project. Procurement teams face a constant balancing act between strict project budgets and necessary signal integrity. Underspecifying your cabling introduces massive hidden risks into your network design. You might experience sudden system downtime. You could suffer severely degraded wireless coverage. Eventually, you might need expensive inline amplifiers just to keep the network operational. This guide provides a vendor-neutral, spec-driven framework for choosing the right solution. You will learn exactly when to deploy a standard RF Cable versus a high-performance alternative based on precise link budgets, frequencies, and installation environments. This comprehensive resource targets network engineers, systems integrators, and procurement teams finalizing critical bills of materials (BOM) for wireless, IoT, or advanced telecommunications deployments.
Regular RF Cables (e.g., standard RG-58) are cost-effective but generally restricted to short runs and sub-1 GHz frequencies due to rapid signal attenuation.
Low Loss RF Cables (e.g., LMR-series equivalents) utilize gas-injected dielectrics and multi-layer shielding to maintain signal integrity over longer distances and higher frequencies (2.4 GHz, 5 GHz, and beyond).
Selection Framework: The decision must be rooted in your specific link budget—evaluating acceptable dB loss against the exact cable run length and operating frequency.
Installation Trade-offs: The superior shielding in low loss cables often results in a stiffer jacket and stricter bend radius limits, requiring more careful routing during installation.
Every wireless deployment requires a rigorous mathematical foundation. You cannot guess your way to a stable connection. Engineers must define clear success criteria before purchasing any materials. This ensures your final network meets performance expectations under real-world conditions.
You must understand your link budget. A link budget accounts for all gains and losses from the transmitter to the receiver. Cables represent a major source of signal loss in this equation. We measure this loss in decibels (dB). Every 3 dB of attenuation results in a 50% loss of transmit power.
Calculating your link budget involves a few specific steps:
Determine Transmitter Power: Identify the output power of your radio or base station.
Calculate Total Cable Loss: Multiply the cable's attenuation rate per foot by the total run length.
Factor in Connector Loss: Add roughly 0.5 dB of loss for every connector or adapter in the line.
Add Antenna Gain: Include the positive gain (dBi) provided by your transmitting and receiving antennas.
Check Receiver Sensitivity: Ensure the final signal strength arriving at the receiver exceeds its minimum sensitivity threshold by at least 10 to 15 dB. This buffer is called the fade margin.
If your calculated signal drops below the required fade margin, your system will fail. You must either shorten the physical run or upgrade to a better cable to solve this problem.
Performance alone does not dictate your cable choice. Environmental and safety regulations play a massive role in material selection. Different installation zones require specific jacket ratings.
If you route cables through drop ceilings or raised floors, fire codes usually mandate Plenum-rated (CMP) jackets. These materials resist burning and emit fewer toxic fumes. For confined spaces like train tunnels or ship bulkheads, you often need Low Smoke Zero Halogen (LSZH) cables. Outdoor installations demand ultraviolet (UV) resistant jackets to prevent cracking under direct sunlight. Neglecting these standards risks catastrophic safety failures and failed building inspections.

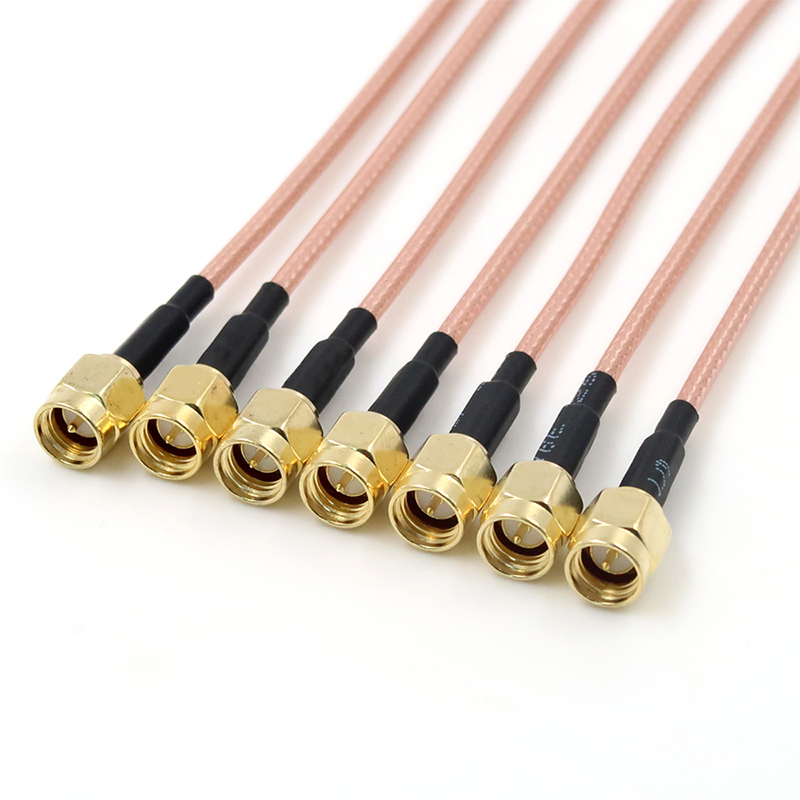

Standard coaxial cables serve as the backbone for countless legacy systems. They offer a simple, cost-effective way to transmit radio frequencies. However, their structural design limits their modern applicability.
Most regular coaxial cables feature a solid polyethylene (PE) dielectric core. This core surrounds the center conductor. A single layer of braided shielding wraps around this dielectric. Manufacturers typically weave this braid from bare copper, tinned copper, or aluminum wire. The braid usually covers between 70% and 95% of the underlying dielectric surface.
Despite their limitations, standard cables excel in specific scenarios. You should deploy them when strict performance metrics take a backseat to flexibility and economics. Their primary applications include:
Short Patch Cables: Connecting closely stacked equipment within a single server rack.
Low-Frequency Bands: Operating VHF or UHF radios well below the 1 GHz threshold.
Test Environments: Equipping test benches where technicians frequently plug and unplug devices.
Temporary Installations: Setting up short-term event communications where high durability matters less than flexibility.
Standard cables struggle immensely at higher frequencies. The solid PE dielectric absorbs a significant amount of radio energy. This absorption turns your valuable signal into useless heat. Furthermore, the single-layer braided shield allows electromagnetic interference (EMI) to penetrate the cable. If you run a standard cable near heavy machinery or power lines, external noise will easily corrupt your data payload. Rapid signal attenuation makes these cables completely useless for long Wi-Fi or cellular antenna runs.
When you transition to high-frequency systems, standard cables fail quickly. A Low Loss RF Cable solves these physics problems through advanced material science. Manufacturers re-engineered the core components to preserve signal integrity over long distances.
The biggest innovation lies inside the dielectric. Instead of solid plastic, high-performance cables use foamed polyethylene (FPE). Manufacturers inject gas into the plastic during extrusion. This creates millions of tiny air bubbles. Air provides a much lower dielectric constant than solid plastic.
This foamed structure dramatically increases the Velocity of Propagation (VoP). A higher VoP means the signal travels faster and experiences far less internal resistance. The resulting drop in attenuation allows your system to push higher frequencies much further down the line.
Standard cables leak signal. High-performance cables trap it. They accomplish this using a dual-shield design. First, a continuous aluminum foil tape wraps tightly around the foam dielectric. This foil provides 100% surface coverage. It acts as an impenetrable barrier against high-frequency leakage.
Second, a high-density tinned copper braid wraps over the foil layer. This outer braid provides structural integrity and blocks low-frequency interference. Together, these two layers achieve an RF shielding effectiveness exceeding 90 dB. Your signal stays inside, and ambient noise stays outside.
These mechanical upgrades deliver measurable results. You will see drastically reduced attenuation rates per 100 feet. The cable maintains a tighter Voltage Standing Wave Ratio (VSWR), meaning less signal reflects back into the transmitter. Improved heat dissipation also allows these cables to handle much higher continuous power levels. They provide the necessary reliability for mission-critical cellular towers and broadband infrastructure.
Choosing between standard and high-performance options requires direct comparisons. You must evaluate how each cable behaves under specific operational stresses.
Operating frequencies dictate your cable choice more than any other factor. Radio waves travel primarily along the outer surface of the center conductor. Engineers call this the "skin effect." As frequencies increase, the skin effect becomes more pronounced. Higher frequencies experience exponentially higher resistance.
At 150 MHz, standard coax might lose 6 dB per 100 feet. At 5.8 GHz, that same standard coax might lose over 40 dB. This level of loss effectively destroys the signal completely. You must create a mathematical cutoff point. When the calculated dB loss exceeds your system's fade margin, standard cable becomes mathematically inviable.
Table 1: Material and Structural Comparison | ||
Feature | Standard Coax (e.g., RG-58) | Low Loss Coax (e.g., 400-Series) |
|---|---|---|
Dielectric Core | Solid Polyethylene (PE) | Gas-Injected Foam PE (FPE) |
Shielding Layers | Single bare/tinned copper braid | Aluminum foil + tinned copper braid |
Shielding Effectiveness | ~40 to 60 dB | > 90 dB |
Velocity of Propagation | ~66% | ~85% |
Physical Flexibility | Highly flexible, tight bend radius | Stiff, larger minimum bend radius |
Distance acts as an amplifier for attenuation. If you only need to bridge a three-foot gap between a router and a desktop antenna, the performance delta remains negligible. Standard cable handles extremely short distances perfectly well.
However, scaling changes the math entirely. Once you surpass 50 feet, the physics shift. A thick, high-performance cable becomes strictly necessary. It preserves base station transmit power. It also protects receiver sensitivity. Long runs demand premium materials to ensure the data actually reaches its destination.
Below is a simplified chart demonstrating how run length scales against acceptable signal integrity.
Chart 1: Viability by Run Length (at 2.4 GHz) | ||
Run Length | Standard Cable Viability | High-Performance Cable Viability |
|---|---|---|
0 - 15 ft | Acceptable (Minimal total loss) | Excellent (Overkill for most needs) |
16 - 50 ft | Poor (High risk of packet loss) | Excellent (Maintains strong link margin) |
51 - 100+ ft | Failure (Signal completely degraded) | Required (Only mathematical option) |
Better electrical performance usually compromises physical flexibility. Advanced cables require thicker center conductors and rigid foil layers. These components increase the cable's overall diameter. They also increase the minimum bend radius.
Standard PE jackets easily loop around tight corners. You can stuff them into small wall cavities or sharp conduit bends. Thick high-performance cables resist bending. If you force them into tight angles, you risk breaking the internal structures. You must plan your physical routing paths carefully to accommodate these stiffer jackets.
Procuring the right cable solves only half the problem. Installation errors can instantly destroy the performance of a premium cable run. Installers must handle these materials with deep technical care.
You must respect the minimum bend radius specifications. When you bend a foil-shielded cable too sharply, the foil tape creases or tears. Worse, the center conductor might shift out of alignment. The center conductor must remain perfectly concentric within the dielectric. If it moves, you create an "impedance bump."
An impedance bump acts like a speed bump for radio waves. It causes a portion of the signal to reflect backward toward the transmitter. This ruins your Voltage Standing Wave Ratio (VSWR). Once you kink a high-performance cable, you permanently ruin its electrical characteristics. You cannot fix it by straightening the jacket. You must replace the entire segment.
Terminating advanced cables requires high precision. You cannot use generic hardware. The precise outer diameter, dielectric thickness, and center pin size dictate connector compatibility. Even if the interface remains a standard N-Type, SMA, or TNC, the connector body must perfectly match your specific cable model.
Furthermore, foam dielectrics require specialized preparation tools. Standard wire strippers crush the foam. Crushed foam alters the dielectric constant at the termination point, causing massive signal reflection. Installers must use precise, rotary stripping tools designed specifically for gas-injected cores.
Outdoor installations face harsh elemental realities. Water presents the greatest danger to your RF system. Foam dielectrics act like rigid sponges. If moisture breaches a poorly sealed connector, capillary action draws water deep into the cable core.
Water fundamentally changes the dielectric constant, instantly increasing attenuation and destroying the signal. To prevent this, installers must execute flawless weatherproofing. You should wrap all outdoor termination points using self-amalgamating mastic tape. Follow the mastic tape with a tight layer of high-quality PVC electrical tape, or use specialized cold shrink tubes. Proper weatherproofing prevents moisture ingress and ensures long-term system stability.
Securing a reliable communication network demands rigorous attention to physical layer components. Treat your cabling choices as critical engineering decisions rather than simple hardware purchases. Following a structured approach guarantees optimal system performance.
Shortlisting Logic: Base your final decision strictly on the calculated link budget. Map your required frequency against the exact run length. Subtract the total calculated loss from your fade margin. Let the math dictate the required material.
Final Recommendation: Default to regular coaxial cables for economical, highly flexible, and very short-run applications below 1 GHz. Mandate advanced, highly shielded cables for all high-frequency Wi-Fi, cellular, long-distance, or mission-critical infrastructure builds.
Next Steps: Always consult manufacturer attenuation charts for specific part numbers before finalizing your BOM. Verify absolute connector compatibility regarding pin size and ferrule dimensions. Request physical product samples to perform realistic routing and bending tests in your enclosures.
A: Generally, no. Wi-Fi operates at high frequencies, specifically 2.4 GHz and 5 GHz. Standard coaxial cables suffer extreme signal attenuation at these bands. Even a 20-foot standard run can consume most of your router's transmit power. You must use a highly shielded, low loss alternative for any Wi-Fi extension longer than a few feet.
A: Acceptable loss depends entirely on your system's required fade margin and baseline receiver sensitivity. As a general industry guideline, engineers aim to keep total cable attenuation between 3 dB and 5 dB. Always calculate your complete link budget to ensure the arriving signal stays well above the receiver's minimum threshold.
A: Yes. While the mating interface remains identical (such as a standard SMA or N-Type thread), the internal dimensions differ drastically. The connector body, the crimp ferrule, and the center pin must perfectly match the thicker dielectric and larger outer diameter of the high-performance cable. Generic connectors will not fit properly.
