Have you ever wondered why an expensive television cable fails completely when plugged into a Wi-Fi antenna? Engineering teams and procurement officers often use the terms "coaxial" and "RF" interchangeably. This creates dangerous confusion. These words actually describe two entirely different classification paradigms. "Coaxial" defines the physical, geometric construction of the wire. Conversely, "RF" (Radio Frequency) identifies the specific application and high-frequency signal type it must carry.
Choosing the wrong specification leads to severe business problems. Even if you purchase a technically sound coaxial cable, an improper match causes rapid failure. You will experience impedance mismatches, severe signal reflection, and unacceptable attenuation in high-frequency deployments. Modern network rollouts demand extreme precision. In this guide, you will learn the exact structural differences between these cables. We will explore how impedance targets affect network performance. You will discover how to evaluate critical engineering metrics. Finally, we will show you how to select the exact specifications for your specific environment.
Terminology crossover: All RF cables rely on a coaxial structure, but not all general-purpose coaxial cables are optimized for precision RF transmission.
The Impedance rule: General coaxial cables (like those for baseband video) often run at 75 ohms, while pure RF networks (wireless, antennas, test equipment) typically require strict 50-ohm matching.
Evaluation criteria: Quality is measured not just by physical durability, but by engineering metrics like VSWR (Voltage Standing Wave Ratio) and Insertion Loss across specific frequency bands (3 kHz to 300 GHz).
Customization necessity: Enterprise deployments often require a Custom RF Cable assembly to match specific environments, power loads, and connector types (e.g., N-type vs. SMA).
Coaxial cable represents a specific physical geometry rather than a single use case. It features a distinct four-layer anatomy engineered to transmit electrical signals. The solid or stranded center conductor carries the primary signal. A surrounding dielectric insulator ensures precise spacing and isolates the core. A metallic shield wraps around the dielectric to block electromagnetic interference (EMI) and radio frequency interference (RFI). Finally, an outer jacket provides vital physical protection against environmental damage.
This architecture acts as a highly versatile generalist. Manufacturers build standard coaxial lines to carry vastly different signal types. They easily handle low-frequency audio, baseband video, and consumer broadband data. The coaxial geometry simply ensures the signal stays trapped inside the wire while blocking external noise.
An RF Cable relies entirely on this same coaxial architecture. However, engineers design it for a much more demanding purpose. They engineer these assemblies specifically to carry modulated, high-frequency electromagnetic signals. They focus relentlessly on achieving minimal loss over distance.
The distinction lies in the manufacturing precision. While it uses a coaxial structure, an RF-grade assembly features much tighter manufacturing tolerances. Facilities highly control its impedance ratings to prevent signal bounce. They utilize specific dielectric materials—such as solid polyethylene or PTFE—optimized strictly for high-frequency transmission. You cannot use a generic coax for an RF application because generalist cables lack these stringent physical tolerances.
Impedance acts as the primary dividing line between cable categories. Broadly, the industry relies on two primary impedance standards. 75-ohm systems serve applications where maintaining signal strength over distance is crucial. You see 75-ohm cables in broadband internet lines, CATV distribution, and SDI video setups. Conversely, 50-ohm systems prioritize optimal power transfer. You find 50-ohm cables in Wi-Fi base stations, two-way radio arrays, GPS modules, and microwave links.
Implementation Risk: You must never mix impedance types across a single system. Connecting a 75-ohm television coax to a 50-ohm antenna port creates immediate problems. This mismatch causes a large portion of the radio signal to reflect back toward the transmitter. You will suffer heavy power loss and risk damaging sensitive transmitting equipment.
Testing standards separate consumer-grade products from professional RF equipment. Manufacturers usually test general coax only for lower frequency spectrums. They guarantee performance just enough for standard television or basic internet signals.
In contrast, RF lines undergo rigorous swept-testing. Engineers verify them across exact high-frequency ranges. They certify these lines to operate smoothly up to 6 GHz, 18 GHz, or even higher. Swept-testing ensures no hidden structural defects will cause unexpected signal dropouts at specific microwave frequencies.
Because their testing and tolerances differ, we deploy these cables in vastly different environments.
General Coax Environments: Residential internet installations, older analog CCTV security systems, and consumer broadcast television distribution.
RF Cable Environments: Factory industrial automation, cellular Distributed Antenna Systems (DAS), aerospace telemetry arrays, and precision laboratory testing equipment.
Engineers classify cables using the legacy "RG" (Radio Guide) system or modern proprietary naming conventions. You must understand these categories to make informed procurement decisions.
RG-59: This cable handles short-range, lower frequency applications. It remains popular for legacy analog CCTV networks but suffers high loss over long runs.
RG-6: This represents the gold standard for CATV and residential broadband. It offers an excellent cost-to-performance ratio for home internet drops.
RG-11: This thicker cable features a larger center conductor. It offers lower attenuation and works perfectly for long-distance trunk distribution exceeding 150 feet.
RG-58: This assembly is thin and highly flexible. However, it suffers from high signal loss at elevated frequencies. It is acceptable only for very short RF jumpers inside equipment racks.
RG-213 (or RG-8): This thicker cable provides much lower loss and handles higher power output. It serves as the standard choice for traditional outdoor radio antennas.
LMR-400 (and LMR series): This represents a massive leap in modern high-performance, low-loss design. Engineers prefer it for modern Wi-Fi base stations and long RF runs.
Below is a quick reference chart summarizing these critical differences.
Cable Model | Impedance | Primary Focus | Typical Use Case |
|---|---|---|---|
RG-59 | 75 Ohms | Video / Short Range | Legacy CCTV, Analog video patches |
RG-6 | 75 Ohms | Broadband / CATV | Residential internet, Digital TV |
RG-11 | 75 Ohms | Long Distance Trunk | Main broadband feeds (>150 feet) |
RG-58 | 50 Ohms | RF / High Flexibility | Short radio jumpers, Test leads |
RG-213 | 50 Ohms | RF / High Power | VHF/UHF outdoor antennas |
LMR-400 | 50 Ohms | Low Loss Microwave | Wi-Fi Base stations, Cellular DAS |
Technical buyers cannot rely merely on physical durability to evaluate cable quality. You must objectively measure high-frequency performance before procurement using specific engineering metrics.
Insertion loss defines how much signal degradation occurs as the energy travels through the wire. We measure this attenuation in decibels (dB) over a set distance at a specific frequency (for example, 1000 MHz).
Data Evidence: If you run a standard RG-58 cable over 100 feet at 1000 MHz, you will lose approximately 10dB of your signal. That means you lose most of your transmitting power to heat. If you switch to high-end LMR-400 for the exact same run, you only lose approximately 3.9dB. This staggering difference clearly justifies premium cable investments for long runs.
Voltage Standing Wave Ratio (VSWR) measures transmission efficiency across a connection. A lower VSWR value indicates better efficiency. When a cable perfectly matches the system impedance, the signal flows freely. When mismatches or structural defects occur, the signal bounces back toward the source. We call this reflected energy return loss. Superior RF networks demand a VSWR ratio as close to 1:1 as physically possible.
Electromagnetic interference ruins digital throughput. You must evaluate the shielding type based on your operating environment. Basic consumer lines use a simple aluminum foil layer. Better cables add a woven metallic braid to catch stray interference. Dense industrial settings often require dual-shielding or tri-shielding. These advanced designs completely prevent environmental noise from penetrating the dielectric core.
Off-the-shelf cables often fail in harsh or highly specific industrial deployments. Standard lengths rarely match exact tower heights, leaving you with tangled slack. You need precise specifications to ensure optimal network uptime.
You must map the right termination directly to the use case. Using the wrong adapter degrades your VSWR.

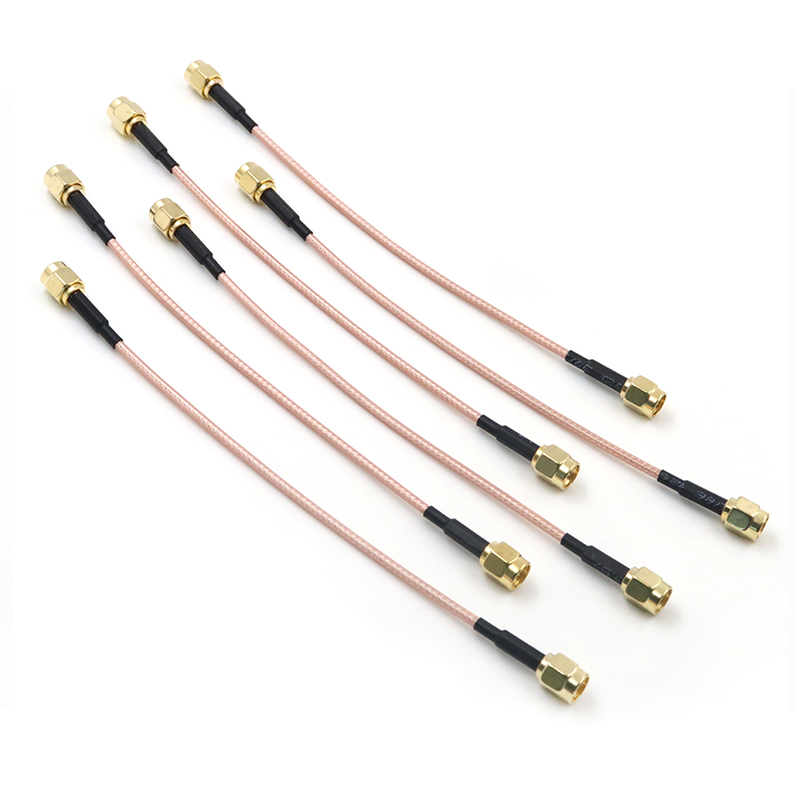

SMA Connectors: Tiny and threaded. They are standard for Wi-Fi routers, GPS modules, and small telemetry boards.
BNC Connectors: Quick-disconnect bayonet style. They dominate test instruments, oscilloscopes, and professional SDI video gear.
N-Type Connectors: Large and rugged. They handle massive power loads for outdoor cellular base stations and large antennas.
F-Type Connectors: The standard threaded connection for residential broadband and CATV modems.
Cable jackets dictate environmental survival. Standard PVC jackets burn quickly and release toxic smoke. If you route lines through indoor drop ceilings, building codes demand Plenum-rated, fire-retardant jackets. Conversely, indoor jackets rot under direct sunlight. For outdoor tower climbs, you must select a UV-resistant PE (Polyethylene) jacket. PE withstands extreme weather, freezing rain, and constant solar radiation.
Manufacturing a Custom RF Cable requires high-quality crimping or precise soldering. Poor terminations introduce massive return loss. You cannot cut corners during assembly.
Implementation Lesson: Installers frequently ruin cables by bending them too sharply around corners. An improper bend radius physically crushes the internal dielectric insulator. This permanently alters the cable's internal geometry and destroys its 50-ohm impedance rating. You will ruin the RF performance forever. Furthermore, if you use signal splitters, you must cap all unused distribution ports with exact 50-ohm or 75-ohm terminators to prevent signal ghosting.
You must stop treating "RF" and "coaxial" as competing physical products. Instead, view "coaxial" as the physical delivery mechanism. View "RF" as the high-precision performance standard applied to that mechanism. Using cheap generalist coax for microwave transmission always results in failure.
Your next steps require precise engineering audits. First, audit your current system's impedance requirements to confirm whether you need 50-ohm or 75-ohm lines. Second, calculate your acceptable dB loss budget over the required run length to select the correct cable thickness. Finally, always partner with manufacturers who provide transparent sweeping and testing documentation for their custom assemblies.
A: No. Regular TV coaxial cable operates at 75 ohms. Wi-Fi antennas and wireless routers require strict 50-ohm impedance. Mixing these causes severe impedance mismatch. Your signal will reflect back to the radio, resulting in massive power loss and poor wireless coverage.
A: They require precision engineering and much tighter manufacturing tolerances. Manufacturers use specialized, low-loss dielectric materials like solid PTFE. They also perform rigorous sweeping tests across high-frequency ranges to certify the exact VSWR and attenuation metrics before shipping.
A: RCA carries unmodulated baseband signals like simple audio. SDI is a digital video protocol that runs on high-quality 75-ohm coaxial cable. An RF cable carries modulated radio frequencies, requiring a tuner or receiver to decode the complex data.
A: You must match both the impedance and the exact physical mating type. Pay close attention to gender and polarity rules. For example, a standard SMA connector will not mate with an RP-SMA (Reverse Polarity) connector. Verify equipment manuals to avoid procurement errors.
